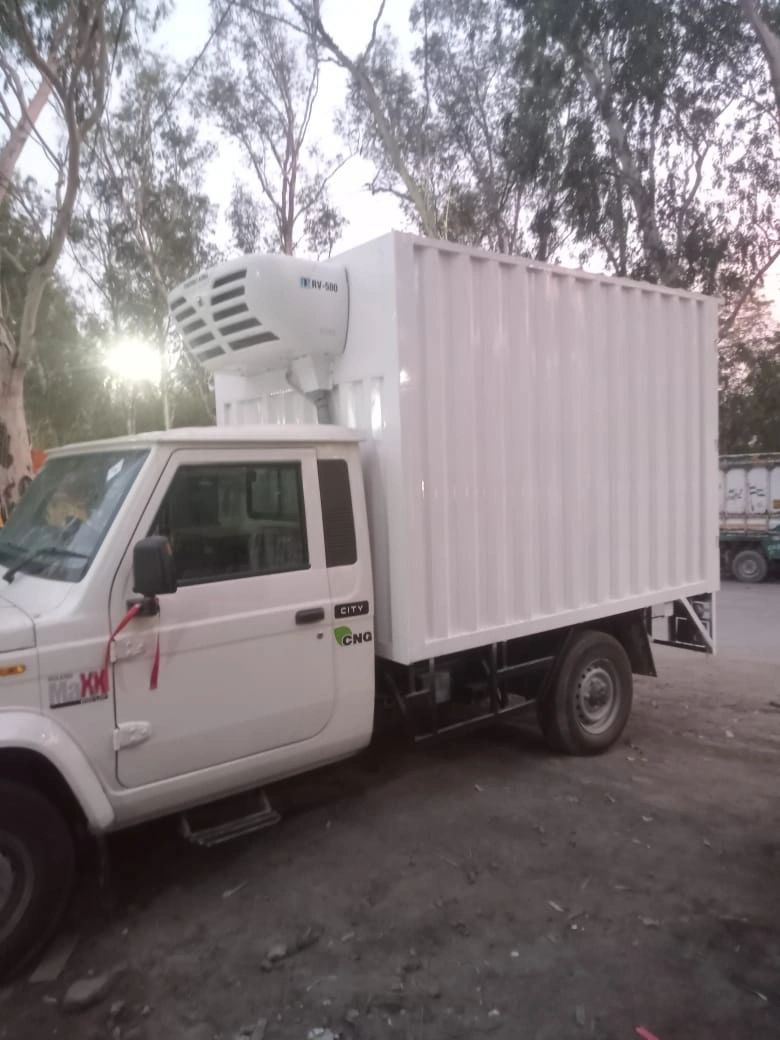

Last Mile Distribution Refrigerated And Insulated Containers
- GRP sandwich panel base construction with DOMEX profiles for the base structural members.
- The sub frame is of light-weight design and made of DOMEX materials and fitted to the base structure with twist bolts and nuts.
- The base bottom skin is of 1.60mm(min) thick GRP joint less sheets and the top skin with marine grade plywood
- The side panels, end panel and Roof shall be made out of interlocking type light weight extruded Aluminium panels(water proof construction).
- Roof is additionally coated with FRP laminate to make it totally water proof.
- All six sides are insulated with 80mm /100mm thick polyurethane foam having thermal conductivity of 0.017W/m Deg K and density in the range of 40-42 Kg/Cu M.
- The four corners are provided with noise - free lifting hooks for empty handling of the containers.
- Container interior is panelled with SS(Food Grade) sheets bonded to plywood and all joints are adequately sealed with SS sections (riveted construction).
- The floor interior will be with SS (FG) sheets TIG welded and laid in the form of a Water Proof tray. The container interior is designed for routine water/steam washing.
- The Container will be provided with a double leaf hinged door at the rear. Each door panel will be of sandwich panel construction with SS sheets for both inside & outside.
- All door hardware like hinges, hinge brackets and Door locking hardware shall be of SS materials( polish finish).
- The Container interior will have flush type , high luminous LED lights and the exterior indicator lights also will be of LED type.
- The overall unladen weight of the container as per the above design will be 35 to 40% lighter compared to the conventional steel containers.
- The Reefer plants of any international reputed make can be fitted as per OEM requirements.
