PUF Insulated Container Body For Chilled Products
- GRP Sandwich Floor with Stainless Steel profiles for the base peripheral members.
- The Base bottom skin is 2 mm (min) thick GRP jointless sheets and top skin with Marine grade plywood.
- The base structure is made out of Rolled Hollow sections for both transverse and longitudinal members.
- All other container structurals are of MS press formed section, shot blasted and primer coated to protect from rust and corrosion.
- The side panels are made out of MS press formed and shot blasted sections fully welded construction. Alternatively interlocking type Aluminium extruded flat sections (Water proof interlocking design) are also used for side panels.
- Container Roof with MS press formed sections, shot blasted & painted and additionally coated with 3mm FRP laminate.
- All six sides of the container are insulated with 80mm thick Polyurethane foam having thermal conductivity of 0.017W/mK and density in the range of 40-42 Kg/m3 .
- Container interior panelled with SS 304 sheets bonded to plywood and all joints adequately sealed with SS flat sections (riveted construction).
- The floor interior with SS corrugated sheets TIG welded and laid in the form of water proof tray.

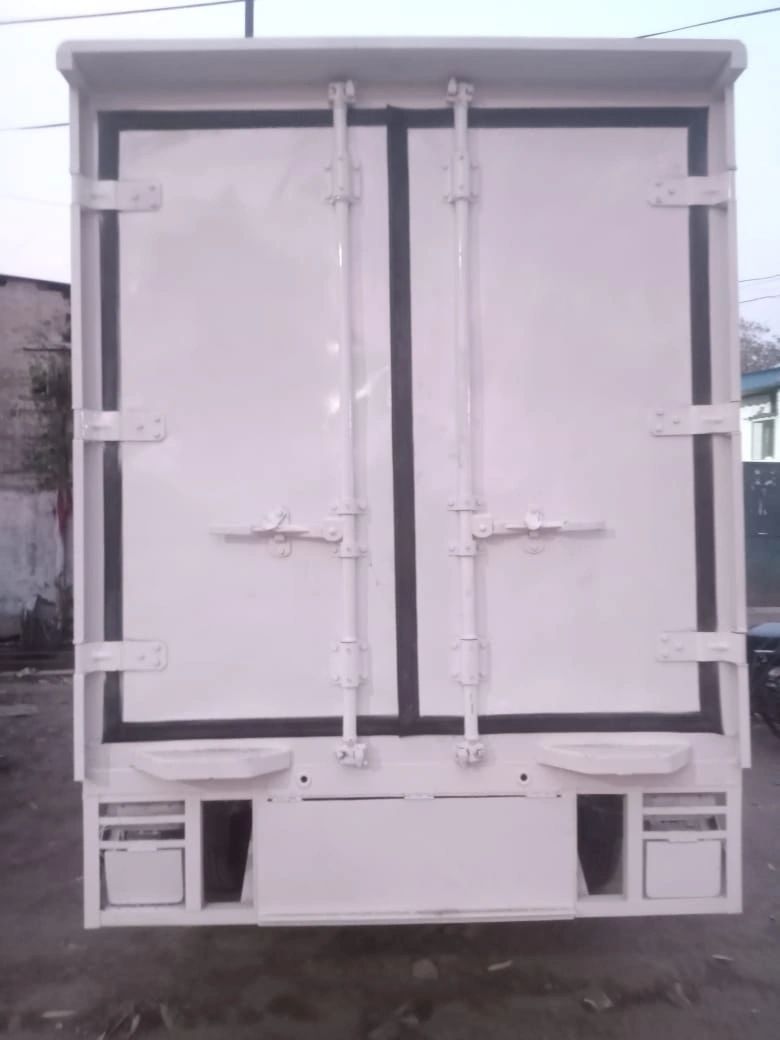

- GRP sandwich double leaf type rear door having SS interior and GRP exterior finish. The doors will have bloxwich type door locking gears and composite door seals.
- The PUF insulated container is integrated with the chassis with the help of a sub frame and cup & cleat locking arrangements.
- The PUF insulated containers are designed for transporting fresh fish mixed wit ice/chilled milk/chilled fruits and vegetables in designated plastic crates for each product.
